通过认证
采用合成纤维，具有高容尘量，初期压损低，风量大

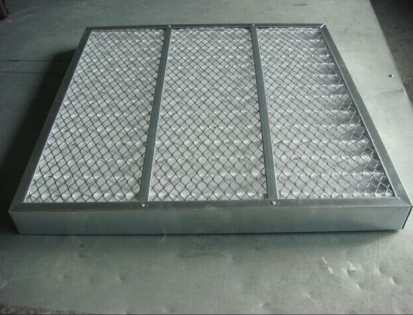

镀锌铁网贴合在滤材上，能增强滤材强度，防止因风力而造成的变形
因为是折叠式，其过滤面积是一般平面滤网的5倍

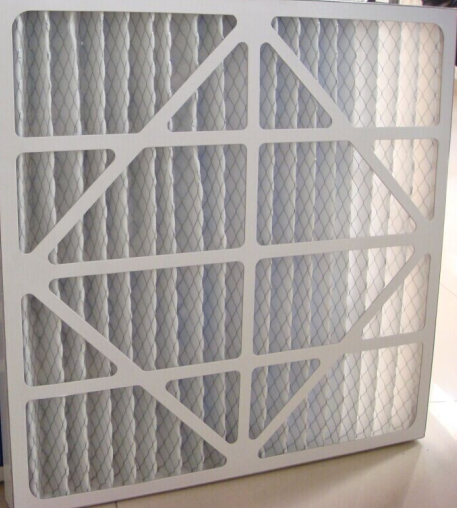

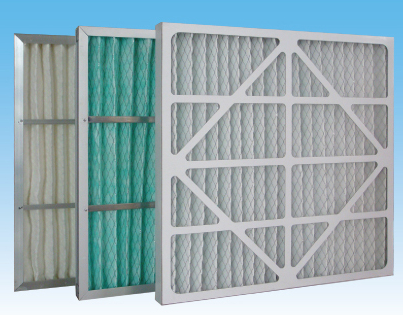

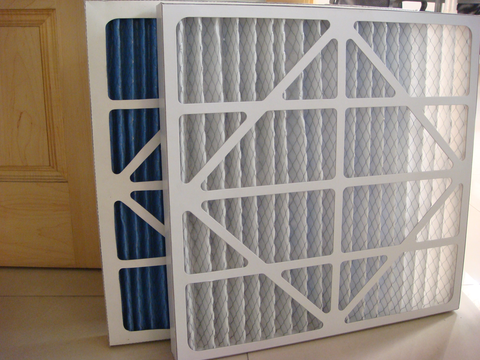

可选用镀锌框、铝框或纸框
耐湿度可达100%
耐温80℃
用于空调过滤 空压机过滤 洁净室过滤等
Synthetic fiber，high dust-holding capacity，low initial resistance and large air volume
Strengthened by galvanized mesh, the fabric is so strong to support the air current
Due to the foldaway, the filtration area is 5 bigger than the flat one
Frame :galvanized sheet, aluminum alloy and paper
Humidity:100%
Temp.resistance:80℃
Air-condition, air compressor and clean room，etc
性能参数specification
|
标准尺寸size（mm） W*H*D |
额定风量（m3/s）rated air flow |
||
|
1.5m/s |
2.5m/s |
3.0m/s |
|
|
595*595*20 |
2040 |
3400 |
－ |
|
495*595*20 |
1785 |
2975 |
－ |
|
495*495*20 |
1445 |
2380 |
－ |
|
395*595*20 |
1350 |
2200 |
－ |
|
595*595*46 |
2040 |
3400 |
4250 |
|
495*595*46 |
1700 |
2805 |
3570 |
|
495*495*46 |
1445 |
2380 |
2975 |
|
395*595*46 |
1445 |
2380 |
2675 |
