产品详细说明

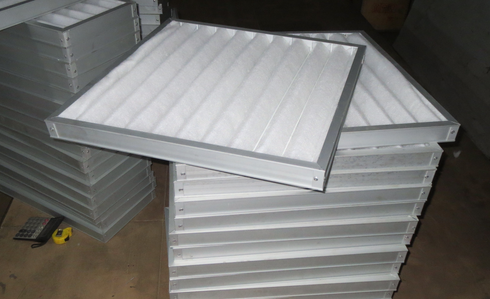

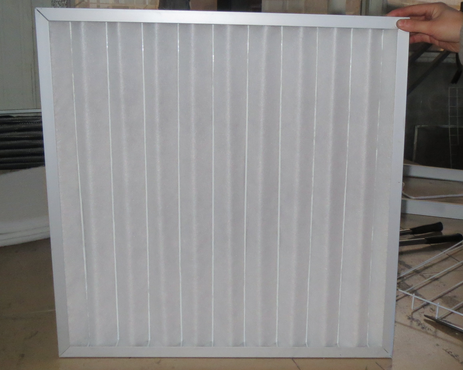

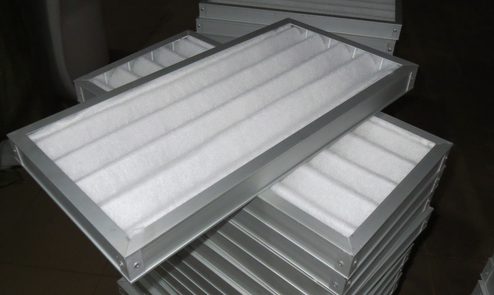

可清洗 可更换式板式过滤器 foldaway and washable plank filter
滤料为初效过滤棉，容尘量大，阻力低
外框可是镀锌框和铝合金框 容易更换
耐湿度可达100%
耐温80℃
用于空调过滤 空压机过滤 洁净室过滤等
With synthetic fiber, big dust-holding capacity, low resistance
Frame :galvanized sheet or aluminum alloy
Humidity:100%
Temp.resistance:80℃
Air-condition, air compressor and clean room，etc
性能参数 specification
|
尺寸size H*W*D(mm) |
额定风量（m3/s）rated air flow |
初阻力(pa)initial resistance |
级别(class) |
|
595*290*46 |
850/1700 |
30/70 |
G3 |
|
595*595*46 |
1700/3400 |
30/70 |
G3 |
|
595*290*46 |
850/1700 |
40/80 |
G4 |
|
595*595*46 |
1700/3400 |
40/80 |
G4 |
